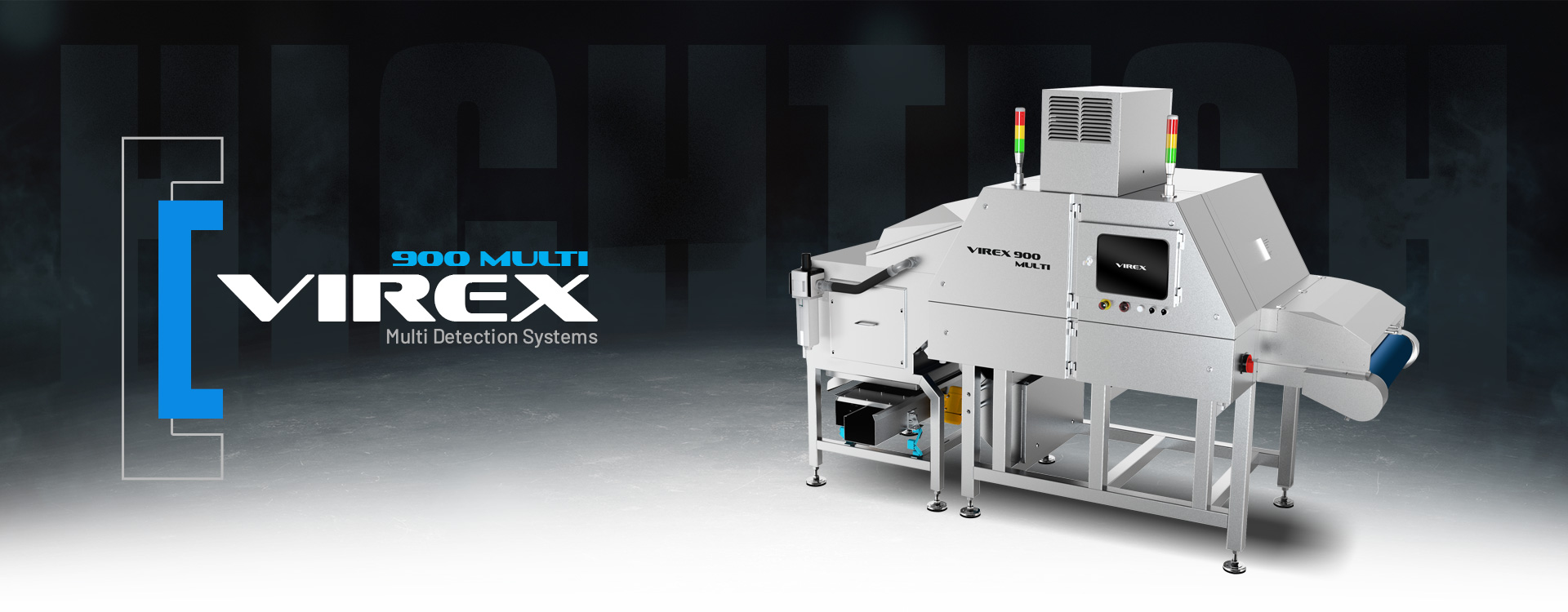

VIREX 900 MULTI
Multi Detection Systems
BENEFITS
-
Single side object scannings by the X-Ray
RGB top and bottom camera
Hyperspectral upper camera
Optional top and bottom laser optical cabins
Non-damaging scanning by the beam that pass through the product
Object detection for a structure which is more intensive than the accepted product
Glass, stone, sus, ceramic and metal detection
Detection of intensive structure of foreign material hidden in the inner zone of products
High sensitivity for small objects
Large scanning area for high capacity
Suitable for sticky and non-slip products from vertical ramps
Can be used for wet or dry products
Fully stainless steel structure
Long belt for proper fixing of products to be sorted
Short feeder for products that do not require spreading, thus occupying less
Space in the plant or long vibration feeder for good distribution of the products together with an integrated dust sieving system
Monophase Electricity
Ip 65
TECHNOLOGY
-
Single side x-ray scanning unit (top)
Up to 3000 scans per second
X-ray Signals Algorithm Software
90 or 180 Air Valves
Scanning system with double-sided color camera (upper and bottom)
6,000 scans per second with a resolution of 4,000 pixels
Special Algorithm Software
Singel side Hyperspectral scanning unit (top)
Up to 6000 scans per second
Special Algorithm Software
Double side Laser scanning units (optional upper and bottom)
Up to 4000 scans per second with 8 lasers
12 signal combined algorithms software
Network Connection
Touch Screen User Interface
FUNCTIONAL DIMENSIONS
-
900 mm scanning area
CAPACITY
-
Capacity varies depending on the density of the product kg / m³
The product with density of 1000 kilograms per cubic meter can be nominally sorted at six tons per hour
TOTAL MACHINE DIMENSIONS
-
W x L x H - 1588 mm x 3335 mm x 2407 mm
REQUIREMENTS
| Electricity | 240 Vac / max 10 A |
| Pressured Air | Min 6 bar / max 10 bar |
| Air Quality | 40 μm filtered oil free, water free, dust free |
| Air Consumption | Typical 144 m³/h |
| Air Connection | 1 inch |
